Our Equipment

We continually invest in the latest high performance machinery and tooling to ensure that our team is equipped with the latest technology for optimal results. Speed, accuracy, and reliability are essential to maximizing our productivity and the quality essential to every product we deliver.

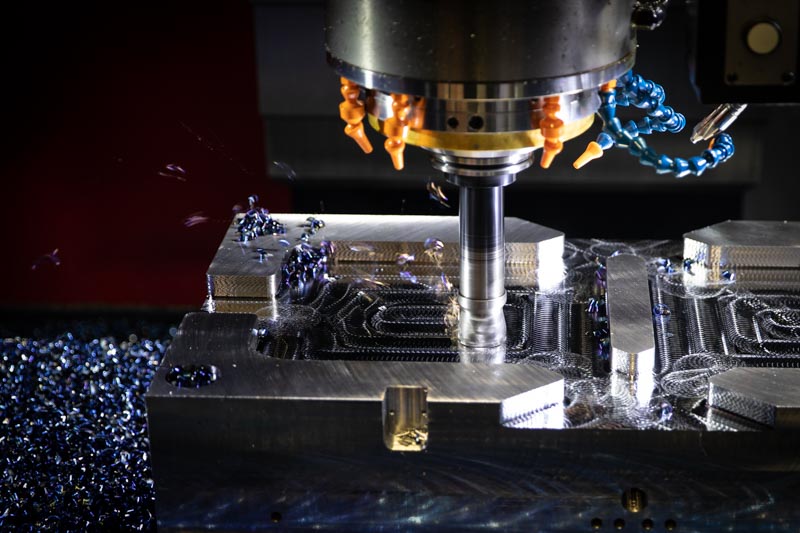

Milling Equipment

Ameritech Milling
NameTypeSizeInfoQty
Fidia K165 5AX Positional 55" x 32" X-40",Y-24",Z20" 30,000rpm max 1
Micron HPM1350 5AX Continuous 44" dia. X-53",Y-45",Z-27" 24,000rpm max 1
DMG HSC75 w Erowa Robot 5AX Continuous 30" dia. X-35",Y-24", Z-24" 28,000rpm max. | 60 Station/6 pallet 1
Makino V55/56 HS VMC 40" x 20" X35",Y-22",Z18" 20,000rpm max 2
Enshu 530 VMC 51" x 22" X-30", Y-21", Z22" 1
Enshu 650 VMC 63" x 26" X-60", Y-26", Z-22" 3
OKK MCV860 VMC 90" x 34" X-80", Y-34", Z22" 20,000rpm max. 1
Kuraki KBT Horizontal 63" x 65" X-79", Y-59", Z-57" 1
OKK VP600 VMC 51" x 24" X-44", Y-24", Z-18" 20,000rpm max. 1
Mori Seiki (3B) VMC 36" x 16" X-22", Y16", Z18" 5500rpm max 1
Makino KE55 VMC 32" x 15" X-22", Y-13", Z-14" 1
Sharp SV2412 VMC 20" x 6' Electrode mounting machine 1



EDM Equipment

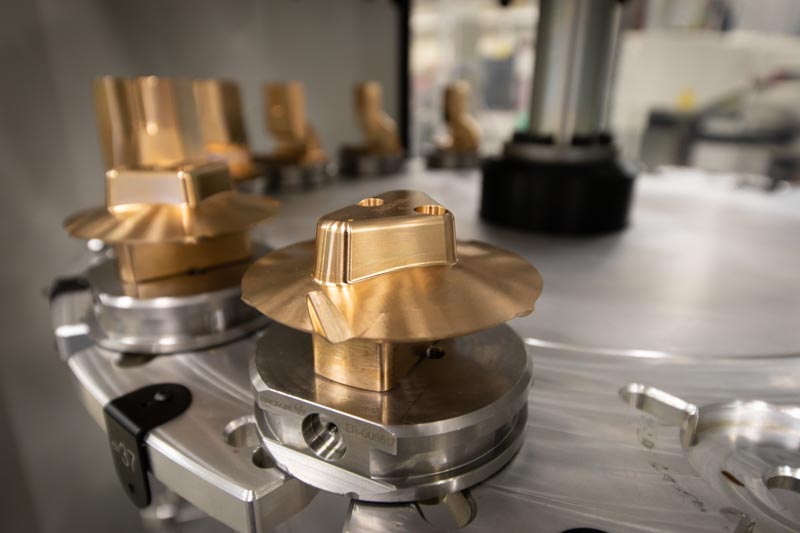

Beryllium Copper EDM Sinkers
NameTypeSizeInfoQty
Charmilles Robofil 440 Wire EDM 22"x14"x16" 48"x28"x16" Tank 1
Castek Fast hole EDM   .3mm- 4.5mm Dia. Capable 1
Makino SNC64 w Erowa robot HS Graphite mill 32" x 15" 144 Stations 1
Ops Ingersoll 1200 w Erowa Robot Carbon EDM 44" x 64" 59"x41"x21" Tank | 185 Stations 1
Roboform 550 Carbon EDM 24"x16"x19" 48"x34"x19" Tank 1

Turning Equipment

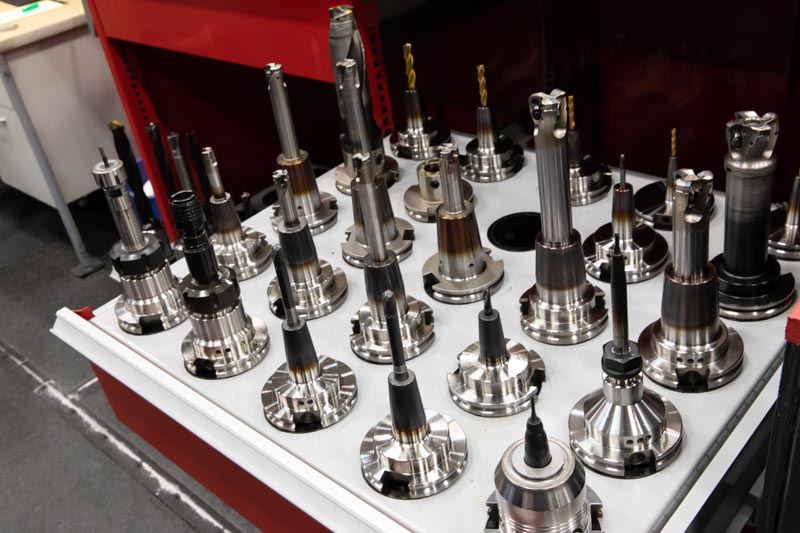

Ameritech Milling Tools
NameTypeSizeInfoQty
Sharp1640 16" swing over bed 40" between centers 24" Swing over gap x 10" wide 1
Mori-Seiki 18" swing over bed 36" between centers Hydraulic Tracer 1

Grinding Equipment

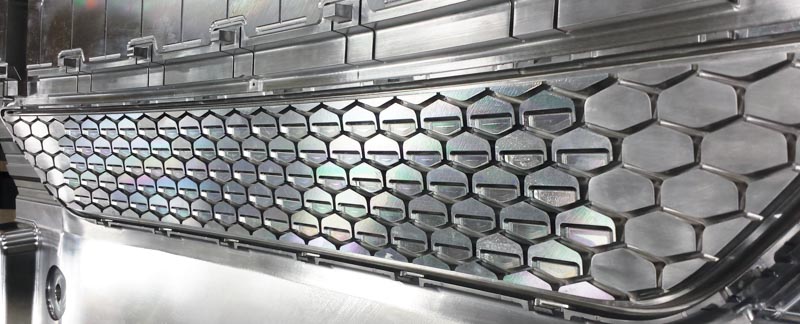

20150928 183715
NameTypeSizeInfoQty
Harig 618 surface grinder   6" x 18" Travel 1
Parker Majestic surface grinder   6" x 18" Travel 1
Gallmeyer Livingston Hydraulic   16" x36" Travel 1

Gun Drill

gun drill

NameTypeSizeInfoQty
Taurus TPI Gundrill (drilling & tapping) 144 x 60 40,000lb cap. .225-1.156 Dia. Capable + Auxillary Spindle 1

Welding Equipment

TS3 9594 Ameritech

NameTypeSizeInfoQty
Vision Laser Laser welder   w microscope 1
Miller 300 amp TIG & stick     1
Miller Maxstar 200 micro welder   w microscope 1

Sample Presses, Spotting Press & Cranes

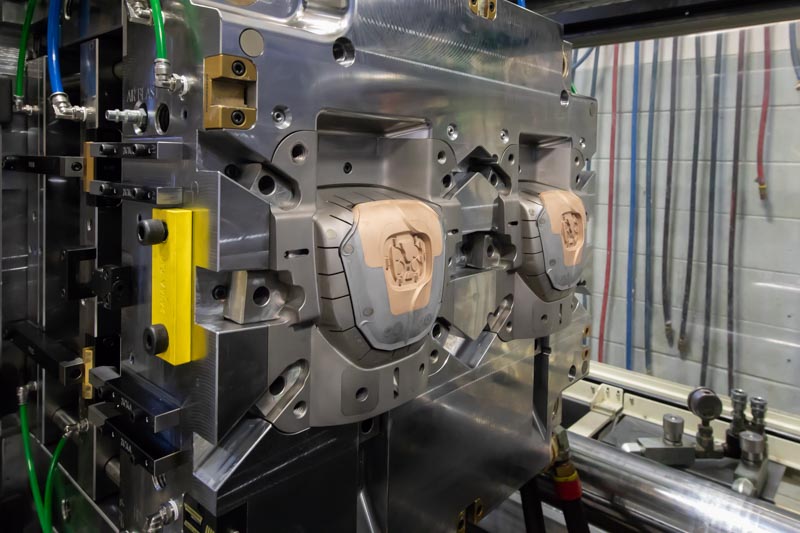

TS3 0592 Ameritech

NameTypeSizeInfoQty
Reis KG Spotting Press   72"x61" platen 55" stroke 1
GoldStar Injection molding machine     220 Ton 1
Nissei Injection Molding Machine     500 ton 1
Five Ton Overhead Cranes       2
Ten Ton Overhead Cranes       2
